If you have purchased ATMOSFRINGE, you will need to register it to receive software updates.
Please
click here for the registration form
(Image Processing supported)
AtmosFRINGE is a powerful Interferogram Analysis software used to extract
quantitative wavefront measurements from a laser interferogram.
The following are some screen shots taken from ATMOSFRINGE. Download the following file: - ATMOSFRINGE
DEMO - (about 3 MB)
PLEASE NOTE: This program will be emailed
as a Zip file. CD-ROM is no longer available. Original
purchasers of ATMOSFRINGE v. 3.x will be entitled to free minor upgrades (for
example: 3.0 to 3.1) for a period of one year from the date of purchase. Major
version changes (for example: 3.0 to 4.0) will be sold at a reduced price to
original customers who have purchased their software within the previous year. If you have purchased ATMOSFRINGE, you will need to register it to receive software updates. Massimo Riccardi's contact information is available on his ATMOS website: http://www.atmos-software.it Copyright © 2004 - 2006, Astro-Physics, Inc. - All Rights Reserved Astro-Physics, Inc.
AtmosFRINGE
is actually the first Interferogram Analysis program that is available at a very
affordable price, especially when compared with other programs for analyzing interferograms.
This allows not only big companies to produce accurate measurements of the
accuracy of their optics but also small workshops and even amateurs can produce
qualitative / quantitative test reports from their interferometers.
AtmosFRINGE
program supports many features :
-Circular Apertures and
Obstructions
-A variety of tabular and graphical plots (2D-3D and contour
plots), as:
* ABERRATIONS
* WAVEFRONT SURFACE
* WAVEFRONT MAP
* PSF
(Point Spread Function)
* MTF (Modulation Transfer Function)
* SYNTHETIC
Interferogram
* Best Fit Conic Constant (ASPHERIC SURFACES)
-Zernike
polynomials
-Zernike Averaging
-Manual fringe editing
-Automatic
fringe tracing
-Subtracting aberrations
-Numerical output of optical
aberrations (tilt, defocus, spherical, astigmatism, coma) P-V, RMS, and Strehl
ratio
-Test report printing (both numerical and graphical)
-Easy to use
graphical user interface
-Any window can be saved as bitmap file
Top
- AtmosFRINGE Slides

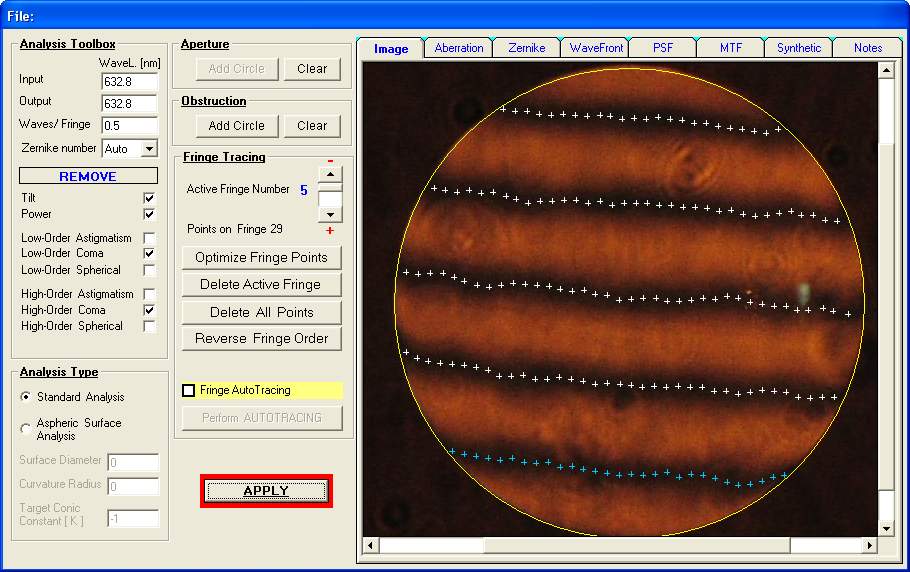

-Main Window

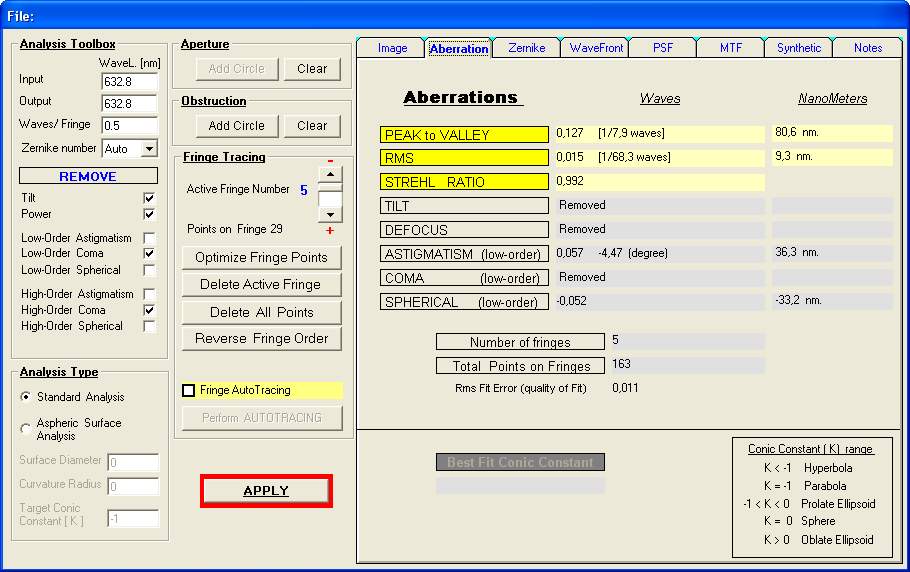

Aberrations

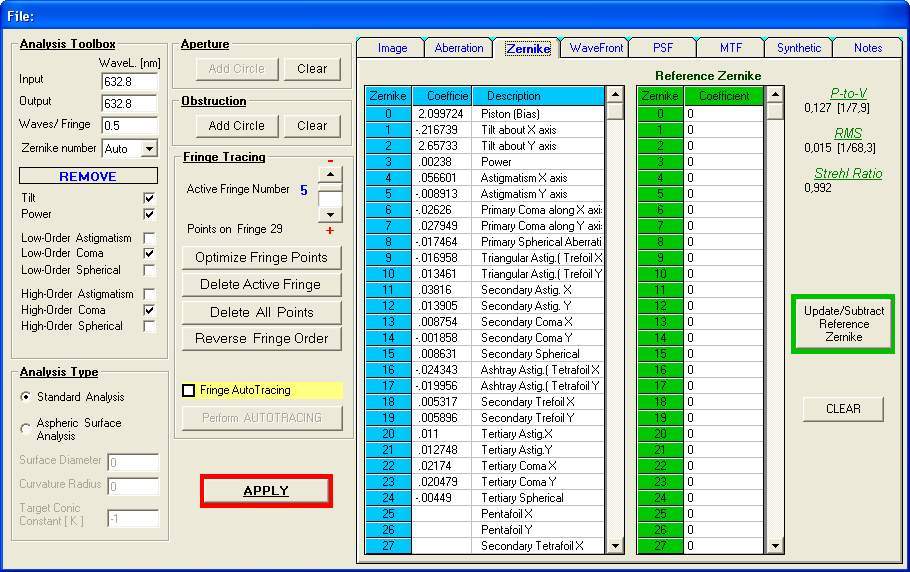

Zernike Coefficients

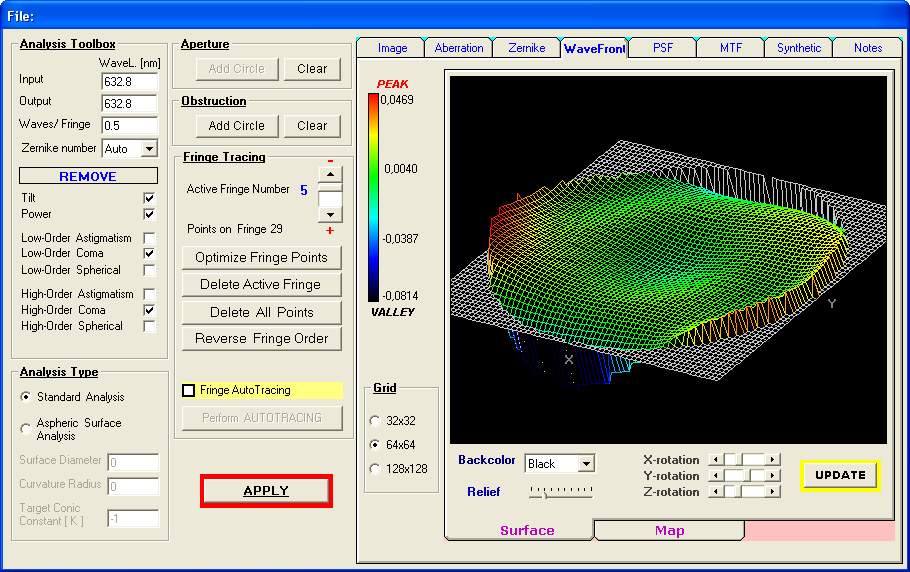

WaveFront
plot

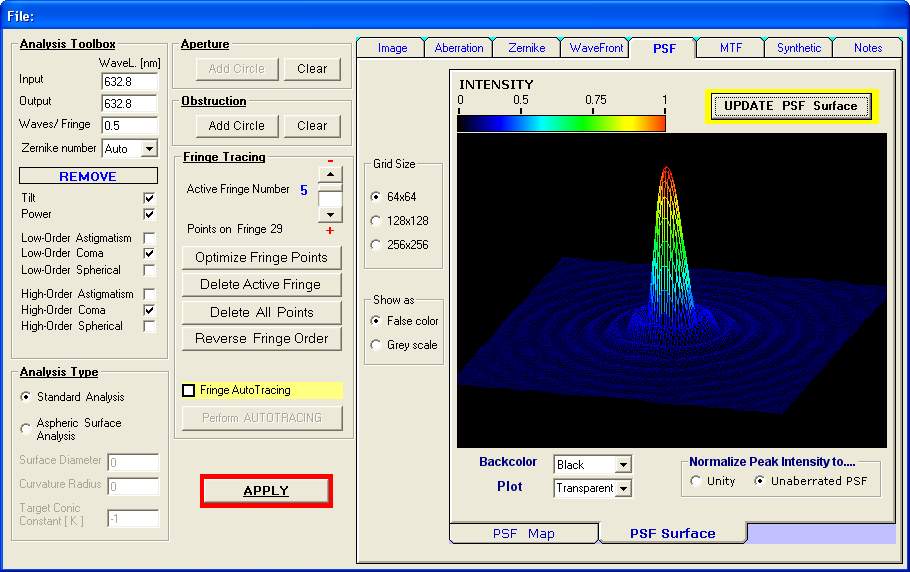

3D-PSF (point spread function)

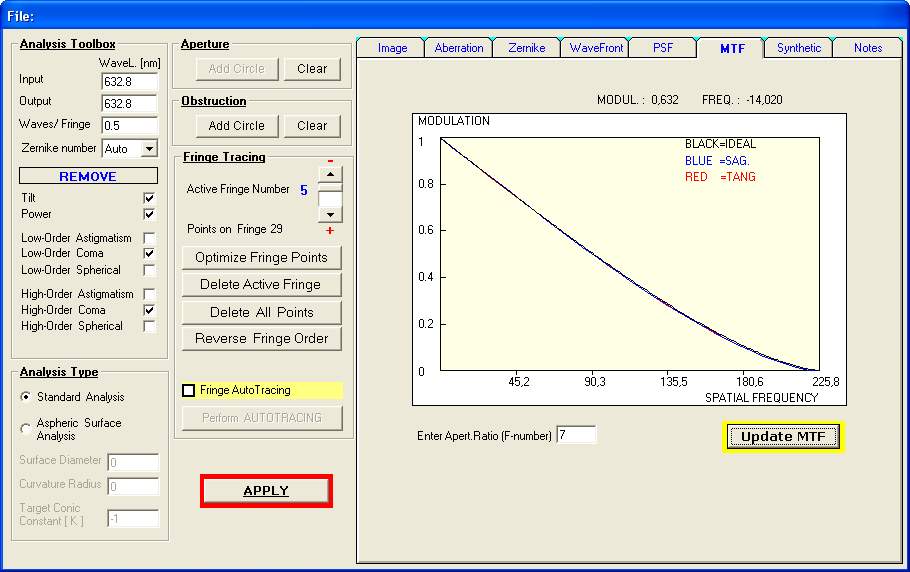

MTF (modulation transfer function)

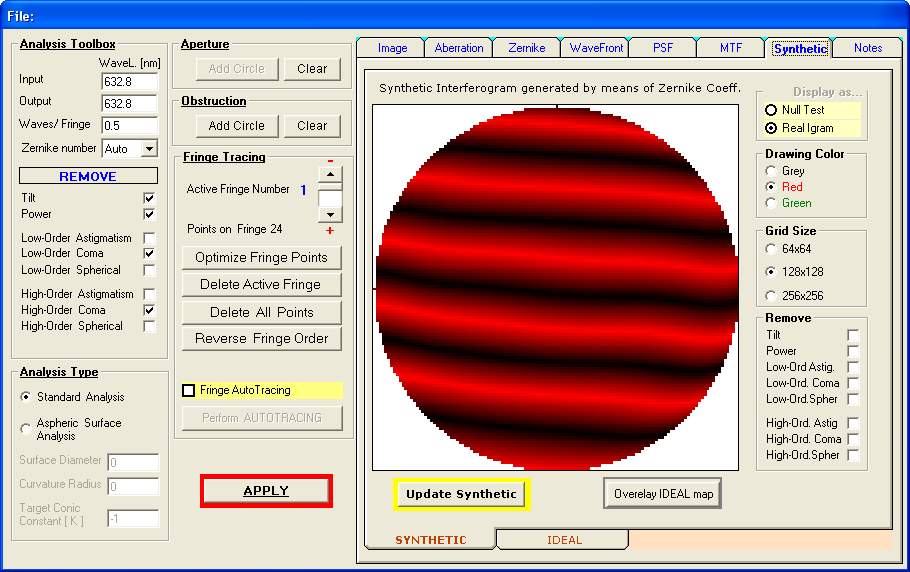

Synthetic
Interferogram

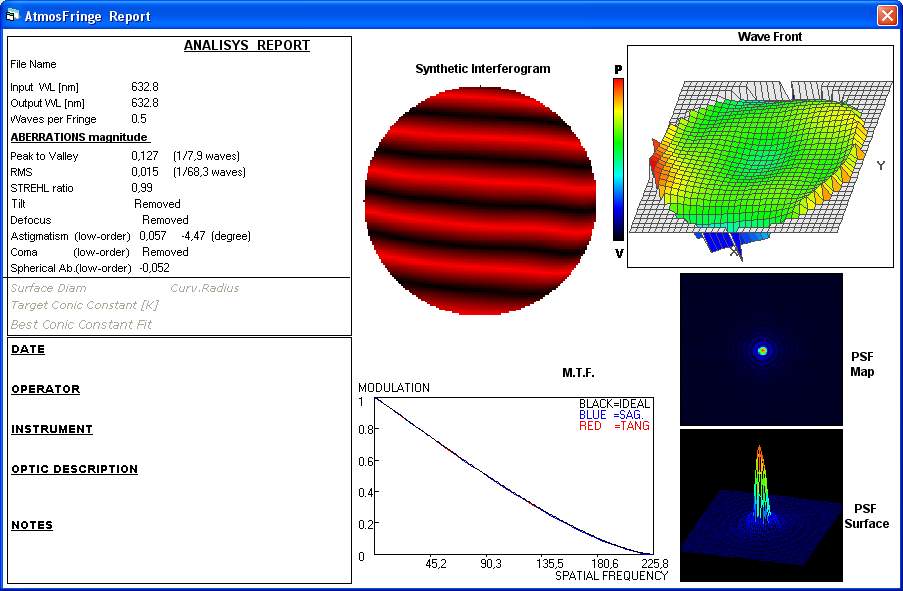

Report window
New Image
Processing window
Top
Minimum hardware requirements:
- Pentium II 600 MHz,
- 256 MByte RAM,
- 30 MByte available on hard disc,
- Windows NT/2000/XP/Vista operating systems preferred (also working on Windows 95/98),
- 1024 x 768 pixel monitor resolution or higher are preferred.
- Download AtmosFRINGE Demo
This is full function program, but has been limited to load
only the sample files. This version will introduce you to the ATMOSFRINGE
interface and give you a feel for the features of the program.
ATMOSFRINGE DEMO comes with 8
sample files, and you can load up and analyze any of them.
After downloading "AtmosFringe Demo.zip" , unzip it then double-click on "setup.exe" for
ATMOSFRINGE self-installation.
- ORDER
PLEASE NOTE: All customers who are residents of the European Union must order this software directly from the author. Astro-Physics will NOT accept orders from anyone in an EU country. Likewise, all customers outside of the European Union must order this software through Astro-Physics. Mr. Riccardi will not accept orders from customers outside of the EU. Thank you for your cooperation in this matter.
EU Customers: http--www.atmos-software.it
A perfect way to pass the time (and learn something about optics) on those cold dreary rainy nights.
Please click here to enter the ATMOS Registration System
Contact Info
ASTRO-PHYSICS Contact Page
Neither Astro-Physics, Inc. nor Massimo Riccardi is responsible for any damages during or after the use of ATMOS or AtmosFringe
software.
